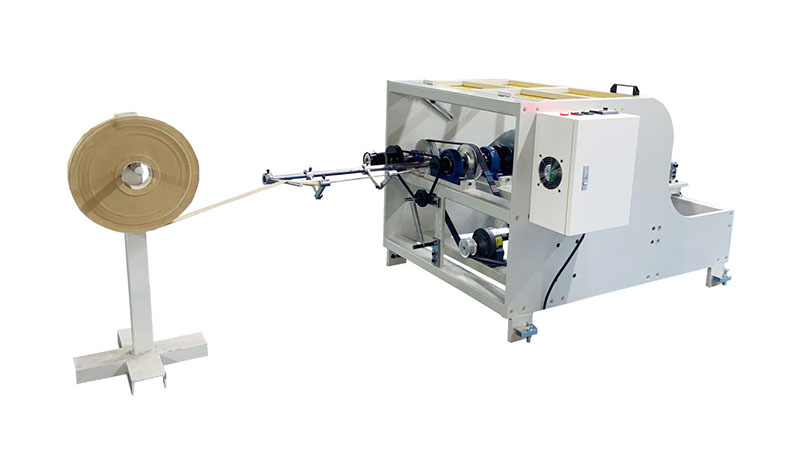

Product Picture
10K Single station twist paper rope making machine
This machine mainly support high speed paper handle machine and paper bag machine. It can make paper rope in a high speed and provide paper rope for paper handle machine. The machine uses narrow web as raw material, through the high speed spinning of the axes of the machine,paper twisted into rope and kept in paper rope roll.Users can adjust the diameter of the paper rope to meet different production needs. We can also upgrade the machine to make it can make two roll paper rope at the same time according to the customers' need which can improve the production efficiency.
Technical Data
Core Diameter of Raw Rope Roll |
Φ76 mm(3'') |
Max. Paper Rope Diameter |
700mm |
Paper Roll Width |
20-100mm |
Paper Thickness |
20-60g/㎡ |
Paper Rope Diameter |
Φ2.5-6mm |
Max. Rope Roll Diameter |
300mm |
Max. PaperRope width |
300mm |
Production Speed |
15-20m/min |
Power Requirements |
220V |
Total Power |
1.1KW |
Total Weight |
Approx.500KG |
Overall Dimension |
L1580*W1150*H930mm |
