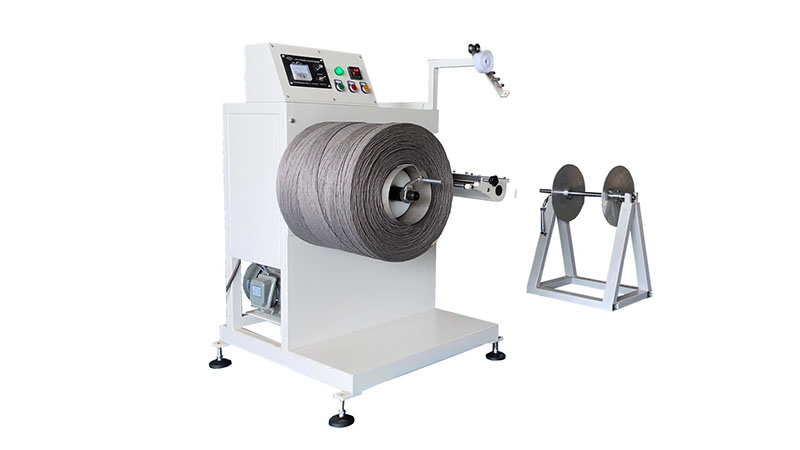

Paper rope rewinding machine
This machine mainly support the paper rope machine.Through the high speed spinning of the axes of the machine,it rewind the paper rope roll which was made by paper rope machine to enlarge the diameter and inner diameter of the final paper rope roll,and it also can avoid the knot of the original paper rope roll.So the machine can enhance the productivity and improve the quality.
Technical Data
|
Core Diameter of Raw Rope Roll |
76 mm |
|
Core Diameter of Final Rope Roll |
180 mm |
|
Final Rope Reel Diameter |
400-600mm |
|
Max. Production Speed |
80-150M/min |
|
Power Requirements |
380V |
|
Total Power |
2.2KW |
|
Total Weight |
Approx.150KG |
|

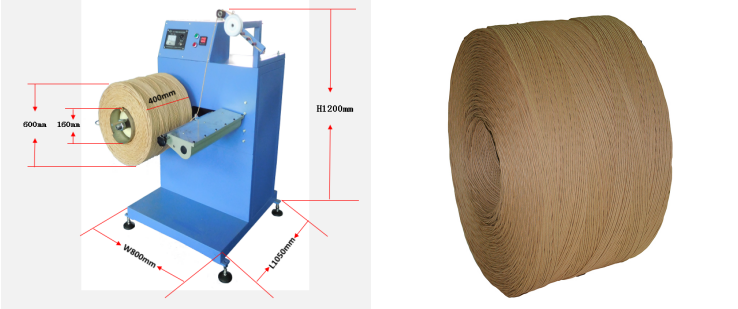

Overall Dimension |
L1050mm×W800mm×H1200mm |
