10E Wate Glue Paper Twisted Handle Making Machine

This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

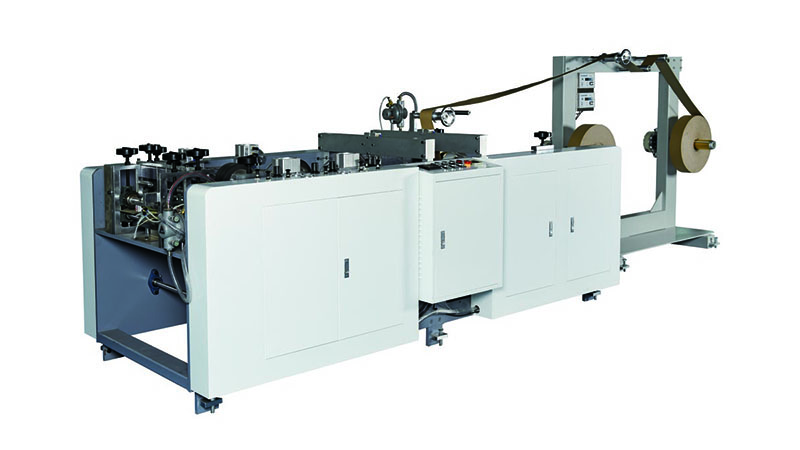

Product Picture


Introduction:

This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

1. The machine is easy to operate and can produce paper handles with high speed usually reach 170 pairs per minute.

2. We design and offer the optional auto-production line, which can automatic gluing replace the human gluing procedure so that help to reduce lots of labor cost. It is strongly advice the paper bag producing factory use the auto-produce line that also support customize.

3. The unit paper bag can lift the heavy things of 15 kg at most, when the tension of raw materials reaches a certain level.


Technical Data

Paper Roll Core Diameter

Φ76 mm(3'')

Max. Paper Roll Diameter

Φ1000mm

Production Speed

10000pairs/hour

Power Requirements

380V

Total Power

7.8KW

Total Weight

Approx.1500kg

Overall Dimension

L4000*W1300*H1500mm

Paper  Length

152-190mm(Optional)

Paper Rope Handle Spacing

75-95mm(Optional)

Paper Width

40mm

Paper Rope Height

100mm

Paper Roll Diameter

3.0-4mm

Paper Gram Weight

100-130g/㎡

Glue Type

water glue

If you have any enquiry about quotation or cooperation,please feel free to email us ator use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
