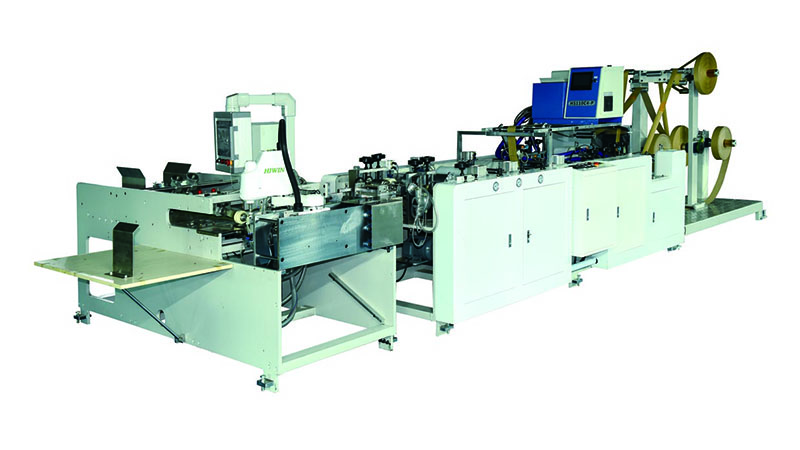

Product Picture
Introduction:
This machine is mainly supporting semi-automatic paper bag machines，Through a complex process, it makes four cutted rolls of paper which have been cut into flat rope and flat handle once shaping,It can produce the flat paper handle on line ,and stick the handle on the bag on line too。
the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
1、Technical data
|
Overall dimension |
L7000*W2450*H1700mm |
|
Motor brand |
ZHENGMING geared motor |
|
Total power |
12.2KW，50HZ |
|
Servo motor brand |
INOVANCE |
|
Servo motor power |
750W two group |
|
PIC programming brand |
Siemens |
|
Hot melt machine brand |
Huangshang Taiwan |
|
Mechanical arm |
DELTA Taiwan |
|
Correct an error |
KCON |
|

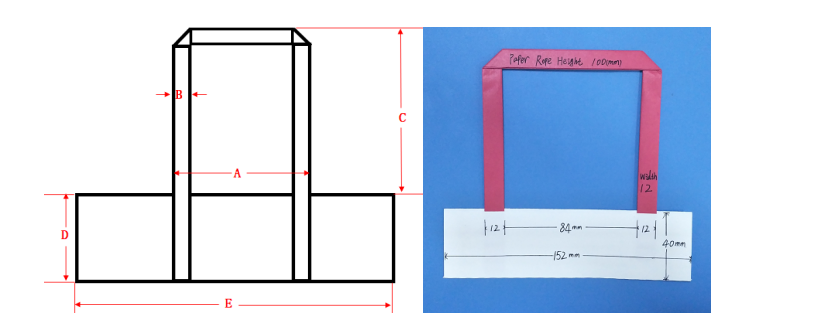

Handle Spacing |
108mm |
|
Paper Rope Width |
12mm |
|
Paper Rope Height |
100mm |
|
Paper Width |
40mm |
|
Paper Length |
152mm |
|
Paper Rope Length |
352mm |
|
Paper thickness |
80-140g |
|
Bag width |
250-400mm |
|
Bag height |
250-400mm |
|
Top opening size over 140mm |
(Bag Width minus the width of folding ) |
|
Production speed |
35-43pcs/min |
