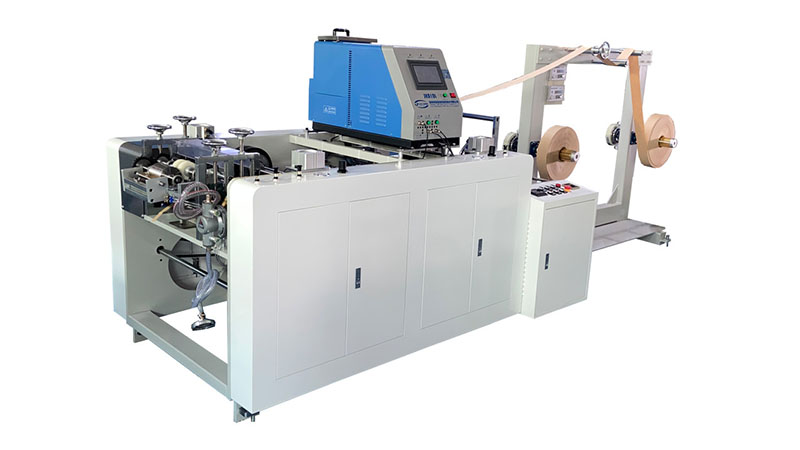

Product Picture
![](http://www.zhuxinpapermachine.com/UploadFiles/attached/image/20220805/20220805144020_4749.png)
Introduction:
This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
1. The machine is easy to operate and can produce paper handles with high speed usually reach 170 pairs per minute.
2. We design and offer the optional auto-production line, which can automatic gluing replace the human gluing procedure so that help to reduce lots of labor cost. It is strongly advice the paper bag producing factory use the auto-produce line that also support customize.
3. The unit paper bag can lift the heavy things of 15 kg at most, when the tension of raw materials reaches a certain level.
Technical Data
Paper Roll Core Diameter |
Φ76 mm(3'') |
Max. Paper Roll Diameter |
Φ1000mm |
Production Speed |
10000pairs/hour |
Power Requirements |
380V |
Total Power |
7.8KW |
Total Weight |
Approx.1500kg |
Overall Dimension |
L4000*W1300*H1500mm |
Paper Length |
152-190mm(Optional) |
Paper Rope Handle Spacing |
75-95mm(Optional) |
Paper Width |
40mm |
Paper Rope Height |
100mm |
Paper Roll Diameter |
3.0-4mm |
Paper Gram Weight |
100-130g/㎡ |
Glue Type |
Hot-melt glue |
