Product Picture

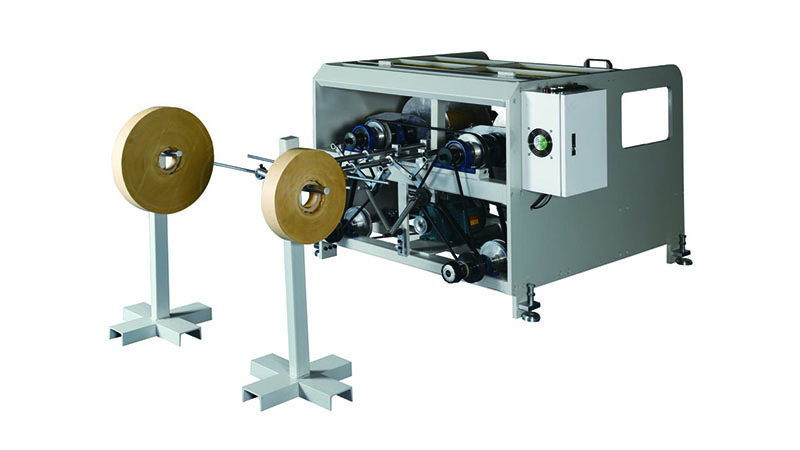

Double station twisted paper rope machine

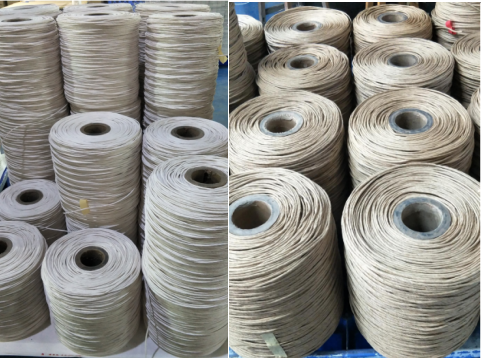

This machine is mainly supporting high-speed hand the machine and paper bag machine, able to quickly produce a circular rope, so as to higher speed the machine to provide raw materials. The machine with a narrow web of raw materials, through the high-speed rotation of the axis of the machine, so that the paper twisted into a rope, and in the form of rope to save. The user can adjust the diameter of the rope, so as to meet different production requirements.
Technical Parameters
|
Core Diameter of Raw Rope Roll |
Φ76 mm(3'') |
|
Max. Paper Rope Diameter |
800mm |
|
Paper Roll Width |
20-100mm |
|
Paper Thickness |
20-60g/㎡ |
|
Paper Rope Diameter |
Φ2.5-6mm |
|
Max. Rope Roll Diameter |
300mm |
|
Max. PaperRope width |
300mm |
|
Production Speed |
20-35m/min |
|
Power Requirements |
220V |
|
Total Power |
1.5KW |
|
Total Weight |
Approx.650KG |
|
Overall Dimension |
L1580*W1440*H930mm |
