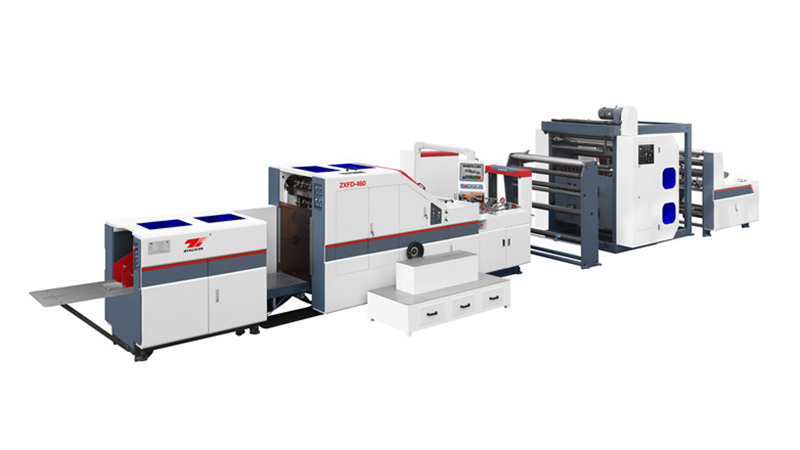

ZXFD-180-290-330-460 +4C Inline Four Color Printer

Full automatic high speed sharp bottom paper bag making machine is suitable for varied primary and printed rolling paper, such as Kraft paper,slick paper,coated paper,medico paper and so on. It finishes all procession all in a time consisting: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively. This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for full paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag eco-bag and so on.

Full automatic high speed sharp bottom paper bag making machine is suitable for varied primary and printed rolling paper, such as Kraft paper,slick paper,coated paper,medico paper and so on. It finishes all procession all in a time consisting: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively. This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for full paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag eco-bag and so on.


Characteristics:

1.1t is suitable for paper between 60-150gsm.
2.The PLC system can calculate parameters correctly.

3.Cut by the point cutter.

4.The electronic control system from Japan is adopted to ensure stable and high-speed operation

5.Material loading adopts hydraulic automatic lifting structure, with automatic tension control.

6.material loading adopts ARISE EPC system, reduce material alignment time.


ZXFD-180 Product Parameters

Width of Paper roll

320-600mm(12.60"-23.62" )

Tube Length

260-533 mm (10.14"-20.99")

Width of Bag

80-190 mm (3.15"-7.48" )

Width of Bag Bottom

50-100mm(1.97"-3.94" )

Paper weight

50-120g/m2

Max. Diameter of Paper Roll

600 mm (23.62")

Internal Diameter of Roll Core

76mm (2.99")

Max.Speed

200pcs/min

Total Power

15Kw

Weight of Machine

Approx 6500 kgs

Machine Dimension

L 8000 mm ×W 2000 mm ×H1800mm


ZXFD--290 Product Parameters

Width of Paper roll

320-900mm(12.60"-36.61" )

Tube Length

260-533 mm (10.14"-20.99")

Width of Bag

120-290 mm (4.72"-11.42" )

Width of Bag Bottom

60-160mm(2.36"-6.30" )

Paper weight

60-150g/m2

Max. Diameter of Paper Roll

1300 mm (51")

Internal Diameter of Roll Core

76mm (2.99")

Max.Speed

200pcs/min

Total Power

15Kw

Weight of Machine

Approx 8500 kgs

Machine Dimension

L 8600 mm ×W 2500 mm ×H1800mm


ZXFD--330 Product Parameters

Width of Paper roll

600-1300mm(23.62"-51.18" )

Tube Length

260.4-533.4 mm (10.25"-21")

Width of Bag

160-330 mm (8.66"-18.11" )

Width of Bag Bottom

60-160mm(2.36"-6.30" )

Paper weight

60-150g/m2

Max. Diameter of Paper Roll

1300 mm (51")

Internal Diameter of Roll Core

76mm (2.99")

Max.Speed

180pcs/min

Total Power

15Kw

Weight of Machine

Approx 10000 kgs

Machine Dimension

L 8600 mm × W 3000 mm × H1800 mm


ZXFD-460 Product Parameters

Width of Paper roll

600-1300mm(23.62"-51.18" )

Tube Length

260.4-533.4 mm (10.25"-21")

Width of Bag

220-460 mm (8.66"-18.11" )

Width of Bag Bottom

60-160mm(2.36"-6.30" )

Paper weight

60-150g/m2

Max. Diameter of Paper Roll

1300 mm (51")

Internal Diameter of Roll Core

76mm (2.99")

Max.Speed

180pcs/min

Total Power

15Kw

Weight of Machine

Approx 10000 kgs

Machine Dimension

L 8600 mm × W 3000 mm × H1800 mm
