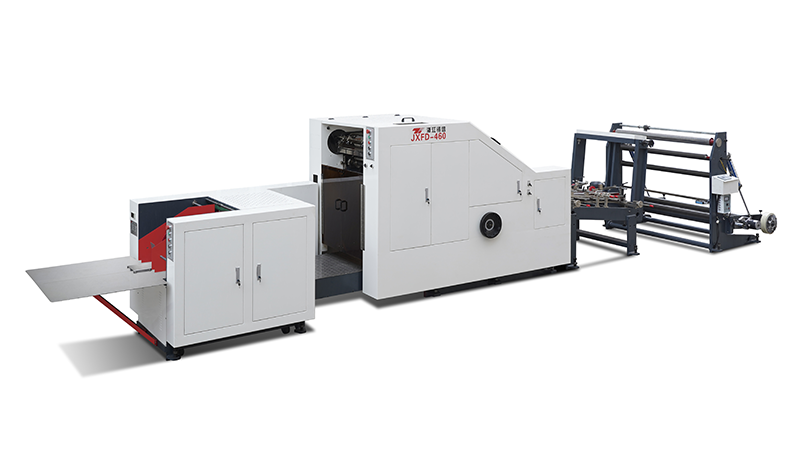

Full automatic high speed sharp bottom paper bag making machine is suitable for varied primary and printed rolling paper, such as Kraft paper,slick paper,coated paper,medico paper and so on. It finishes all procession all in a time consisting: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively. This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for full paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag eco-bag and so on.
Characteristics
1：1t is suitable for paper between 80-150gsm.
2：The PLC system can calculate parameters correctly.
3：Cutbythepointcutter.
Main technical parameters
|
Model |
JXFD-180 |
|
|

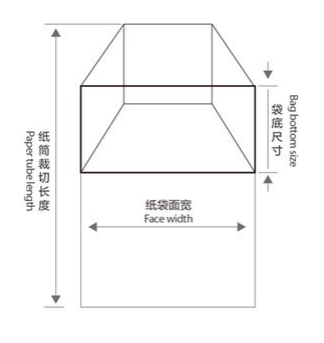

Length of cutting |
260-530mm
|
|
|
Bag length |
260-530mm
|
|
|
Bag width |
80-190mm
|
|
|
Bag speed |
150pcs/min
|
|
|
Paper feed width |
320-600mm |
|
|
Bottom width |
50-100mm |
|
|
Paper material thickness |
50-120g/m² |
|
|
Working Air Current |
≥0.12m3/分钟，0.6-1.2兆帕 More than 0.12m3/ minutes, 0.6-1.2 MPa |
|
|
Electric power |
380V3相4线 11kw 380V3 phase 4 wire 11kw |
|
|
Total weight |
4300kg |
|
|
Machine Dimension |
10000x1600x1750mm |
|
|
Model |
JXFD-290 |
|
|
Length of cutting |
260-530mm
|
|
|
Bag length |
260-530mm
|
|
|
Bag width |
120-290mm
|
|
|
Bag speed |
150pcs/min
|
|
|
纸料宽度 Paper feed width |
320-900mm |
|
|
Bottom width |
60-180mm |
|
|
Paper material thickness |
60-150g/m² |
|
|
Working Air Current |
≥0.12m3/分钟，0.6-1.2兆帕 More than 0.12m3/ minutes, 0.6-1.2 MPa |
|
|
Electric power |
380V3相4线 11kw 380V3 phase 4 wire 11kw |
|
|
Total weight |
4500kg |
|
|
Machine Dimension |
10000x2500x1800mm |
|
|
Model |
JXFD-330 |
|
|
Length of cutting |
260-530mm
|
|
|
Bag length |
260-530mm
|
|
|
Bag width |
140-330mm
|
|
|
Bag speed |
150pcs/min
|
|
|
Paper feed width |
320-900mm |
|
|
Bottom width |
80-180mm |
|
|
Paper material thickness |
80-150g/m² |
|
|
Working Air Current |
≥0.12m3，0.6-1.2 More than 0.12m3/ minutes, 0.6-1.2 MPa |
|
|
Electric power |
380V3 phase 4 wire 11kw |
|
|
Total weight |
4800kg |
|
|
Machine Dimension |
10000x26000x1800mm |
|
|
Model |
JXFD-460 |
|
|
Length of cutting |
260-530mm
|
|
|
Bag length |
260-530mm
|
|
|
Bag width |
220-460mm
|
|
|
Bag speed |
150pcs/min
|
|
|
Paper feed width |
600-1300mm |
|
|
Bottom width |
100-200mm |
|
|
Paper material thickness |
80-150g/m² |
|
|
Working Air Current |
More than 0.12m3/ minutes, 0.6-1.2 MPa |
|
|
Electric power |
380V3 phase 4 wire 11kw |
|
|
Total weight |
5000kg |
|
|
Machine Dimension |
10000x3000x1800mm |
|
|
Model |
JXFD-460 |
|
|
Length of cutting |
260-530mm |
|
|
Bag length |
260-530mm
|
|
|
Bag width |
220-460mm |
|
|
Bag speed |
150pcs/min |
|
|
Paper feed width |
600-1300mm |
|
|
Bottom width |
100-200mm |
|
|
Paper material thickness |
80-150g/m² |
|
|
Working Air Current |
More than 0.12m3/ minutes, 0.6-1.2 MPa |
|
|
Electric power |
380V3 phase 4 wire 11kw |
|
|
Total weight |
5000kg |
|
|
Machine Dimension |
10000x3000x1800mm |
|
