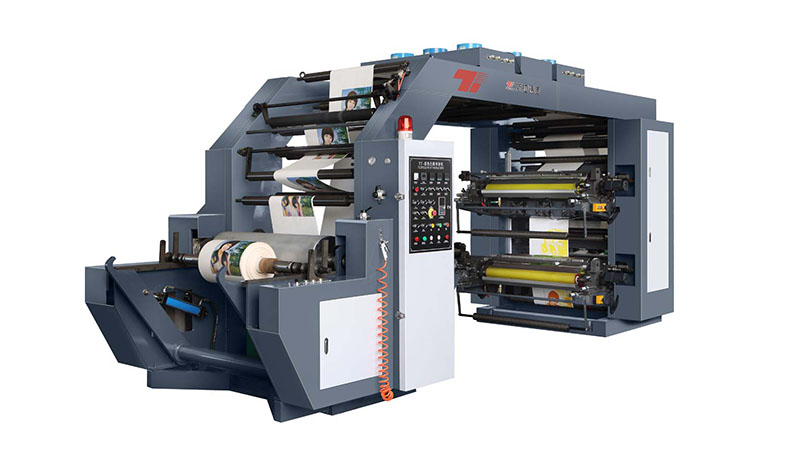

YT-4600S+4800S+41000S+41200S+41400S FLEXO printing machine

Application: paper, film, non-woven fabrics, woven tape,other packing materials Printing color :4 Max raw material width : 600/800/1000/1200/1400mm

PARAMETERS AND PARTS

Application: paper, film, non-woven fabrics, woven tape,other packing materials

Printing color :4

Max raw material width : 600/800/1000/1200/1400mm

Max raw material lengtstrong00-1000mm

Max printing width  560/760/960/1160/1360mm

Max machine speed 120mmin

Max printing speed  80-120m/min

Accuracy of registrasion:vertical±0.15mm(manual) horizontal±0.15mm(manual)

unwinder/ rewinder diameter: φ1000 mm unwinder/ rewinder

printing way: mechanical adjust

printing plate lifting system:Automatic Hydraulic cylinder control printing roller.

anilox roll: it adopts imported ceramic anilox roller

tension systems:unwinding adopts automatic tension control system, 10kg of magnetic powder.

rewinder/unwinder:clamp material in air shaft,invert with analog quantity controlled,one 2.2kw motor equipped

EPC way:automatic photoelectric

Drying way: electric heat

HEATING POWER: 19KW (DOULD HEATING SET IN PARTICULAR, IT WILL MAKE drying FASTER)

BLOWER: Drying oven of axial flow fan 45W X12sets,small fan of each group 40W X15sets

Main motor: 3.7kw

main inverter:adjust the speed by inverter

ink motor:gear motor(0.6kw X4 )

total power:30kw

Machine size:L5.3M * w2.2M * strong.6M

Bearing: Japan NSK one-way bearing ,ASNU aluminum alloy guide pulley for hard oxidation, dynamic balance, static balance treatment


PARTS INCLUDED IN THE MACHINE

1. Main motor inverter control oubang brand taiwan

2. Ink motor one set oubang brand taiwan

3. Main machine inverter control one set weichuang brand

4. Blower fan made in jiangsu

5. Alumiun roller baixiao brand

6. Ceramic anilox roller six pcs made in shanghai (100-1000lpi to be advised)

7. Low voltage appratus schneider brand french

8. Switches schneider brand french

9. Control box one set zhuxin made

10. Main machine frame one group zhuxin made

11. Whole machine iron steel

12. Phumatic parts kaili brand

13. Auto tension ruiyu brand

14. Photocell epc ruiyu brand

15. Auto loading and rewinding by hudraulic system

16. Back to back friction winder

17. Close chamber doctor balde

18. Video still picture kesai brand
