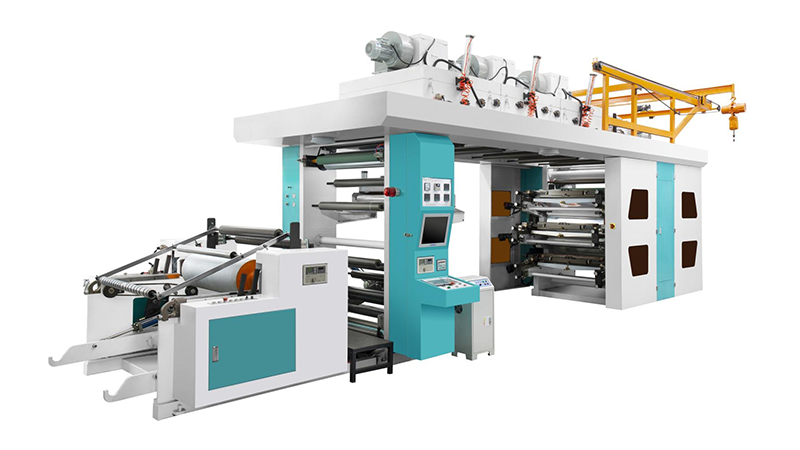

6-colors 1600mm CI Flexo Printing Machine
1) Chamber doctor blade with auto ink pump* 6pcs
2) Plate roller 40cm *6pcs.
3) Ceramic Anilox Roller (80--1000LPI) * 6pcs
4) EPC (Ultrasonic web guide) *1pcs
5) Air shaft * 2pcs
6) Hydraulic in & out printing roller
7) Auto hydraulic loading&unloading
8) Auto tension control*2sets
9) PLC+Video inspection
10)Auto-Lubrication system for central drum
11) Color registration adjusting by motor
12) Motor control ceramic roller and plate roller in and out
13) All aluminum rollers are oxidized
14) Crane to lift the cylinder and ceramic anilox roller
15) Big roller friction rewind system for paper
|
Technical Specification |
|
|
Model |
ZXYT-61000S |
|
Material Feeding Width |
1600mm |
|
Max Printing Width |
1560mm |
|
Colors |
6 colors |
|
Material |
Film. PVC.OPP.PE.BOPP.PE.NY.PET.CPP. |
|
Thickness of plate |
1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm Customized is available |
|
Printing length |
Standard is 400mm，Customized is available from 300-1000mm |
|
Printing speed |
120m/min-150m/min |
|
Register precision |
±0.15mm |
|
Gear module |
1.5mm |
|
Heating method |
Electricity heating |
|
Unwind/rewind paper |
core 3＂ |
|
Max.unwind/rewind dia. |
1000mm |
|
Structure type |
Central impression（central drum） Gear drive(china) |
