Main Technical Parameters
|
Model |

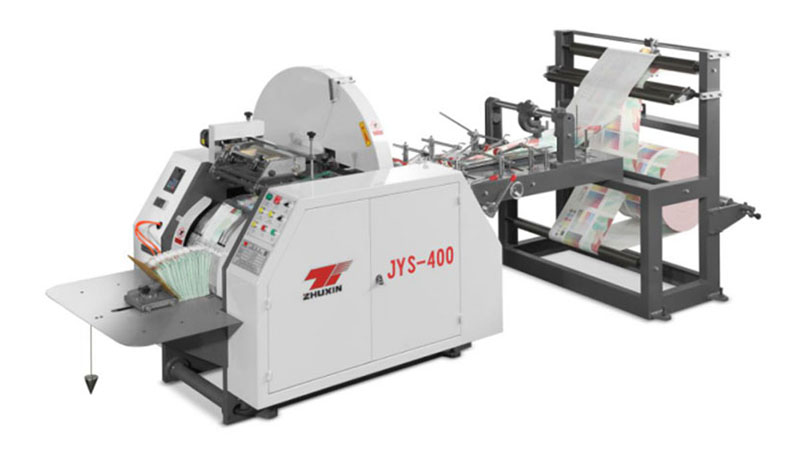

JYS-400 |
|
|
Length of cutting bag |
160-420mm |
|
|
Bag width |
70-260mm |
|
|
Insert size |
20-120mm |
|
|
Bag mouth height |
15/20mm |
|
|
Bag speed |
100-400pcs/min |
|
|
Paper feed width |
720 mm |
|
|
Paper material dia. |
1000 mm |
|
|
Paper material thickness |
40-80g/m² |
|
|
Working Air Current |
More than 0.12m3/ minutes, 0.6-1.2 MPa |
|
|
Electric power |
4KW |
|
|
Total weight |
1800kg |
|
|
Machine Dimesion |
4500x1700x1900mm |
|
