Parameters And Parts
Paper weight 40-80gsm
Bag length 220-600mm
Bag width 80-300mm
Speed 60-400pcs/min
Power 3.7kw
Weight 2000kg
Machine dimensions(Lx W x H) 4500*2100*1900mm
Production Precision ±0.5mm
Maximum Materials Feeding Width 260-720mm
Max loading diameter 600mm with mechanical shaft
Inline Two Color Printer
max width of substrate 800mm
max printing width:750mm
range of printing length:200-600mm
speed :50m/min
Main Technical Parameters
|
Model |
JYS-650 |
|
|

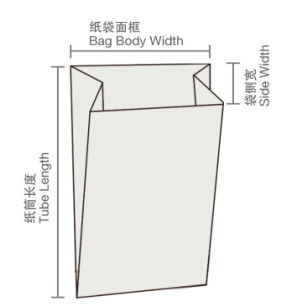

Length of cutting bag |
200-600mm |
|
|
Bag width |
||
|
Insert size |
20-120mm |
|
|
Bag mouth height |
15/20mm |
|
|
Bag speed |
100-400pcs/min |
|
|
Paper feed width |
1000 mm |
|
|
Paper material dia. |
1000 mm |
|
|
Paper material thickness |
40-80g/m² |
|
|
Working Air Current |
More than 0.12m3/ minutes, 0.6-1.2 MPa |
|
|
Electric power |
4KW |
|
|
Total weight |
2000kg |
|
|
Machine Dimesion |
4500x1700x1900mm |
|
