Main technical parameters
|
Model |
ZXJD-750 |
|
|
Length of cutting bag |
160-750mm |
|
|
Bag width |
80-320mm |
|
|
Insert size |
20-140mm |
|
|
Bag mouth height |
15/20mm 15/20mm |
|
|
Bag speed |
50-600pcs/min |
|
|
Paper feed width |
200-920mm |
|
|
Paper material diameter |
200-1000mm |
|
|
Paper material thickness |
40-80g/m² |
|
|
Working Air Current |
More than 0.12m3/ minutes, 0.6-1.2 MPa |
|
|
Electric power |
380V3 phase 4 wire 15kw |
|
|
Total weight |
4000kg |
|
|
Machine Dimension |
7600x1700x2100mm |
|

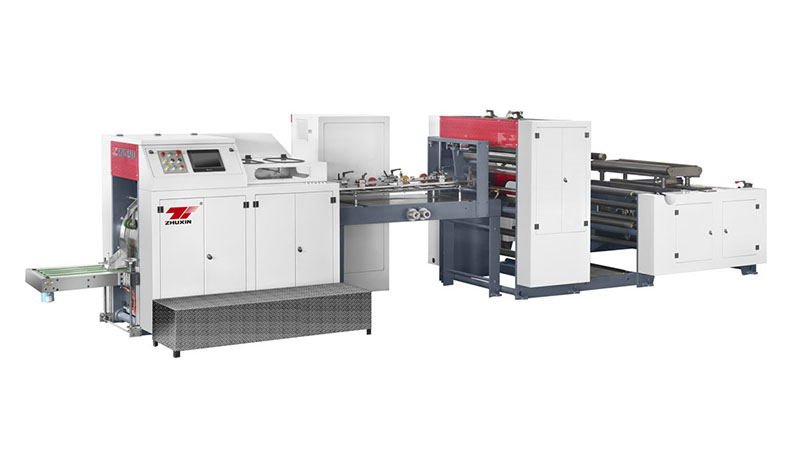

Product Information
Categories: Paper Bag Machine
Brand: Zhuxin Paper bag machine ,film blowing machine
Model: ZXJD-750
It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald's bags.
Characteristics:
1.1t is suitable for paper between 40-80gsm.
I can control bag length through human-machine interface.
3.The PLC system can calculate parameters correctly.
It is equipped with an accurate photocell system.
Cut by the point cutter.
ZXJD-750 Features
1. Suited for 40-80gsm paper.
2. Controls bag length through the human-machine interface.
3. PLC system for calculating parameters.
4. Equipped with an accurate photocell system.
5. Cut by the point cutter
