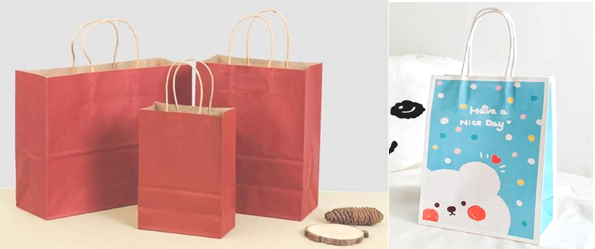

BAG SAMPLES
MACHINE REFERENCE PHOTO
Fully-automatic paper bag machine is used to produce hand-held paper bags by using roll paper as raw material, combined with hand-held paper pieces and paper ropes. The machine adopts PLC and motion controller, servo drive control system, intelligent operation interface, high production speed, high efficiency, is the ideal equipment for the production of food, cosmetics, wine, gifts and clothing bags.
The production process: drum feeding, stick handle, tube forming, cutting, bottom indentation, bottom gluing, bag bottom forming and output.
CHARACTERISTIC
01 The forming template adopts symmetrical adjustable double- template structure (proprietary technology), so that users of different sizes of paper bags no longer need to change the template, which can effectively reduce the time of paper bag size adjustment and increase the machine capacity.
02 The special design greatly improves the bag-making range of the machine, which can meet the customer's demand of producing extra-large hand-held paper bags.
03 The electronic control system from Japan is adopted to ensure stable and high-speed operation
04 Material loading adopts hydraulic automatic lifting structure, with automatic tension control.
05 material loading adopts ARISE EPC system, reduce material alignment time.
PARAMETER
|
BAG MACHINE MODEL |
ZXFD-180 |
ZXFD-290 |
ZXFD-330 |
ZXFD-460 |
|
Paper diameter |
≤1300mm |
≤1300mm |
≤1300mm |
≤1300mm |
|
Core inner diameter |
Φ76mm |
Φ76mm |
Φ76mm |
Φ76mm |
|
Paper weight |
45-130g |
80-150g |
80-150g |
80-150g |
|
Paper bag width (with handle) |
120-180mm |
120-280mm |
200-330mm |
250-400mm |
|
Paper bag width (without handle) |
80-180mm |
120-280mm |
140-330mm |
220-460mm |
|
Paper tube length (With handle) |
191-330mm |
191-330mm |
260-530mm |
280-500mm |
|
Paper tube length (Without handle) |
191-430mm |
191-430mm |
260-430mm |
280-600mm |
|
Bottom width |
50-120mm |
50-120mm |
60-180mm |
90-200mm |
|
Machine speed |
150pcs/min |
150pcs/min |
150pcs/min |
150pcs/min |
|
Total power |
32KW |
32KW |
23/42KW |
34KW |
|
Machine weight (with handle) |
13000KG |
13000KG |
16000KG |
18000KG |
|
Machine weight (without handle) |
7000KG |
8000KG8 |
9000 |
10000KG |
|
Machine dimension(with handle) |
12×5×2.5 M |
12×5×2.5 M |
11×2.6×1.8M |
15×5×2.5 M |
|
Machine dimension(without handle) |
12×5×2.5 M |
12×5×2.5 M |
14×6×3 M |
15×5×2.5 M |
|
HANDLE MODEL |
114DH |
152DH |
152HD |
190HD |
|
Handle rope height(mm) |
102/115/ 125/140 |
102/115/ 125/140 |
102/115/ 125/140 |
115/125/ 140/150 |
|
Handle patch width |
45-50 mm |
45-50 mm |
45-50mm |
45-50mm |
|
Handle patch length |
114.3 mm |
114.3mm |
152.4 mm |
190.5 mm |
|
Handle rope diameter |
Φ4-6mm |
Φ4-6mm |
Φ4-6mm |
Φ4-6mm |
|
Dia. of handle patch paper roll |
Φ1200mm |
Φ1200mm |
Φ1000mm |
Φ1200mm |
|
Handle patch paper roll width |
90-100mm |
90-100mm |
90-100mm |
90-100mm |
|
Handle patch weight |
100-120g |
100-120g |
100-120g |
100-120g |
