High-speed Automatic Slitting machine
WFQ SERIE HORIZONTAL HIGH-SPEED AUTOMATIC SLITTING MACHINE
We are High-speed Automatic Slitting machine suppliers/manufacturers from china factory. We also can produce the High-speed Automatic Slitting machine according to the client’s requirement. We are always try our best to become the good High-speed Automatic Slitting machine, slitting machine, strip separating machine, slitter rewinder, paper roll slitting machine, plastic film slitting machine manufacturers/suppliers and welcome the customer from all over the world to contact with us.

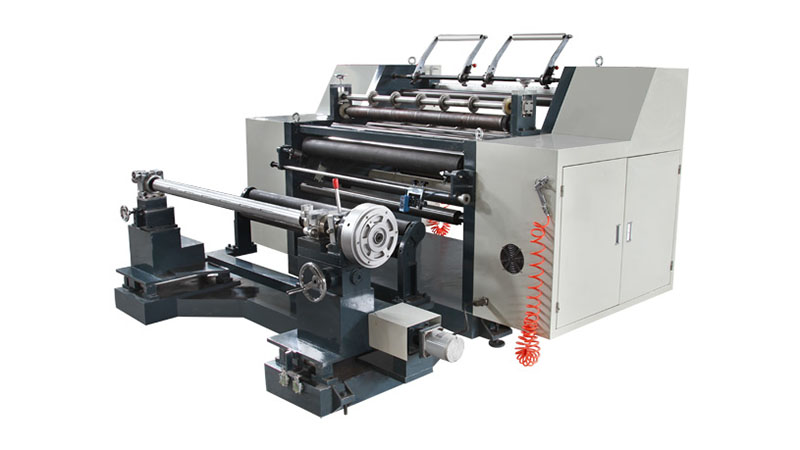

WFQ Horizontal Type High-speed Automatic Slitting machine
Performance and Characteristics:
Use:This machine is suitable for separating and cutting such various roll mateiale as BOPP,PEL,CPP,CPE,PVC, aluminium foil and paper,etc, and can cut edge, separate and cut materiel according to different requirements during production.
Performance and Characteristics:
1.Auto maticlly rectify the unevenness of the end face or the film or paper with pattern deviation.
2.Adopting superior quality photoelectric switch, LPC deviation-rectifying control system makes rectification more accurate.
3. Automatic metre counting and automatic stopping at settable counting metre number.
4.The round knife device can separate and cut rool paper of 350k/m2 or below.
5.Inflatable rolling shaft makes it easier and faster to load and unload paper core.
6.Automatic slitter edge blowing-inhaling device.
7.Separate winding mode equipped with tension control is adopted for unwinding stand.Winding tension is controlled by interlock of independent driving of two magnetic powder clutches and main motor.
Main Teachnical Variables:
Model: WFQ1100
Max.width of separating and cutting roll material: 1100mm
Max.diameter of separating and cutting roll material: f600mm
Width of roll material cutting: 30-1100mm
Speed: 5-160m/min
Power: 3kw
Outline dimension: 2200X2200X1100mm
Weight: 1500kg
Model: WFQ1300
Max.width of separating and cutting roll material: 1300mm
Max.diameter of separating and cutting roll material: f600mm
Width of roll material cutting: 30-1300mm
Speed: 5-160m/min
Power: 3kw
Outline dimension: 2200X2400X1100mm
Weight: 1800kg
